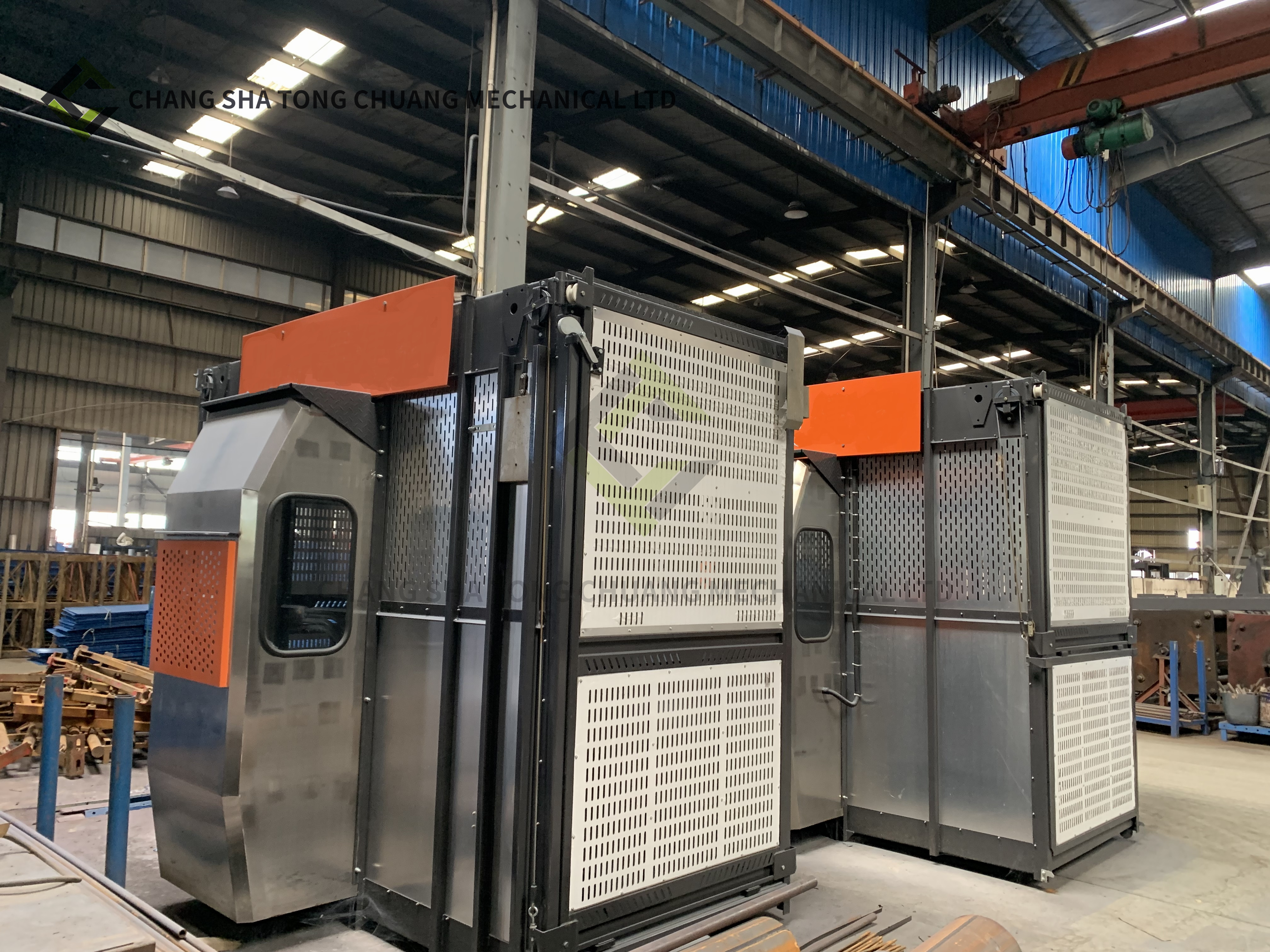

Double Cage High Speed 200/200Z Construction Hoist Building Buck Hoist 1t 2t From China Manufacturer (NEW)

Brand Name : OEM

Model Number : SC200/200Z

Place of Origin : Chang sha China

MOQ : 1piece

Price : negotiate

Payment Terms : L/C, T/T, Western Union

Supply Ability : 15pcs/month

Delivery Time : 20-30 days

Packaging Details : Export standards

Model NO. : sc200/200

Usage : Construction Hoist

Sling Type : Rack

Lift Drive / Actuation : Electric Motor

Lift Mechanism : Rack

Attendant : With Attendant

Deceleration Device : With Deceleration Device

Elevator Door : Rack

Transport Package : Plastic Film

Specification : 3.2*1.5*2.4

HS Code : 8426200000

Contact Now

SC200/200Z 0-51m/min construction Hoist

Product Description:

1.Construction hoist could be designed according to different building situations.
2. With ISO9001, CE, SGS, certifications
3. Double or Single cage with loading capacity from1000kg to 2000kg.

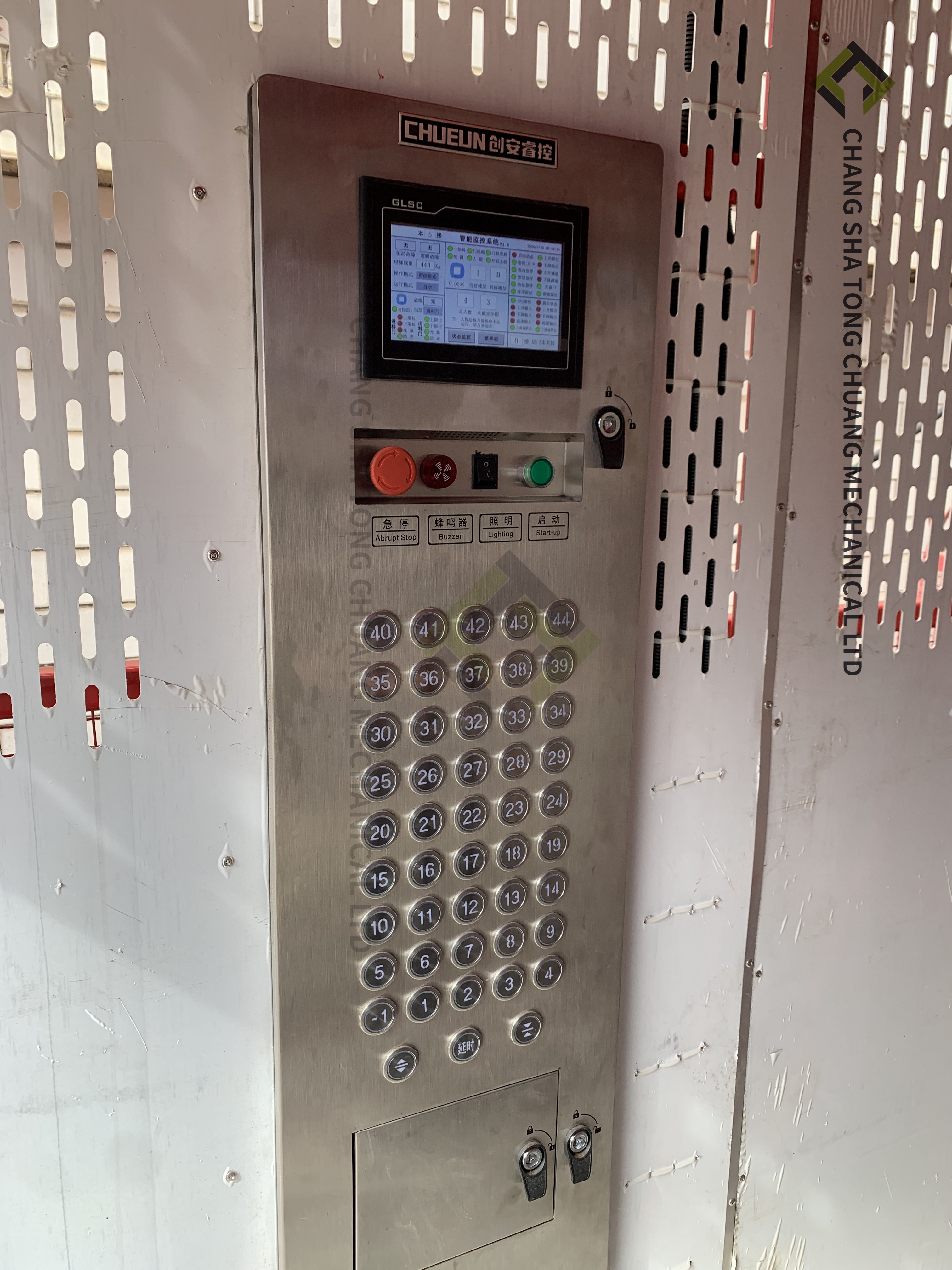

4. With Frequency converter or DOL control system with low speed, MID speed, and high speed.
5. All Production Line adopt special fixtures, mold, gauge made by us to ensure all sizes suitably.

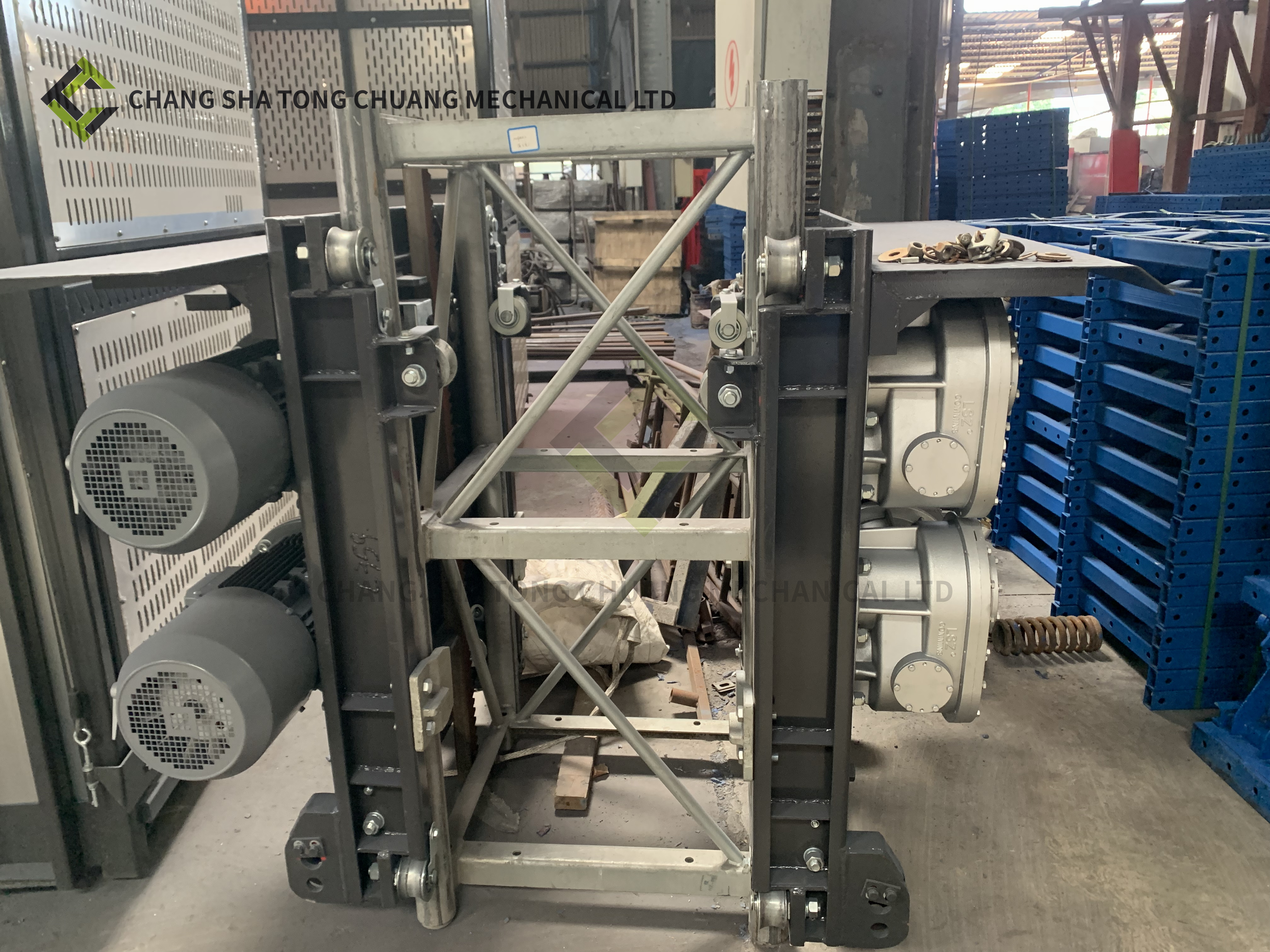

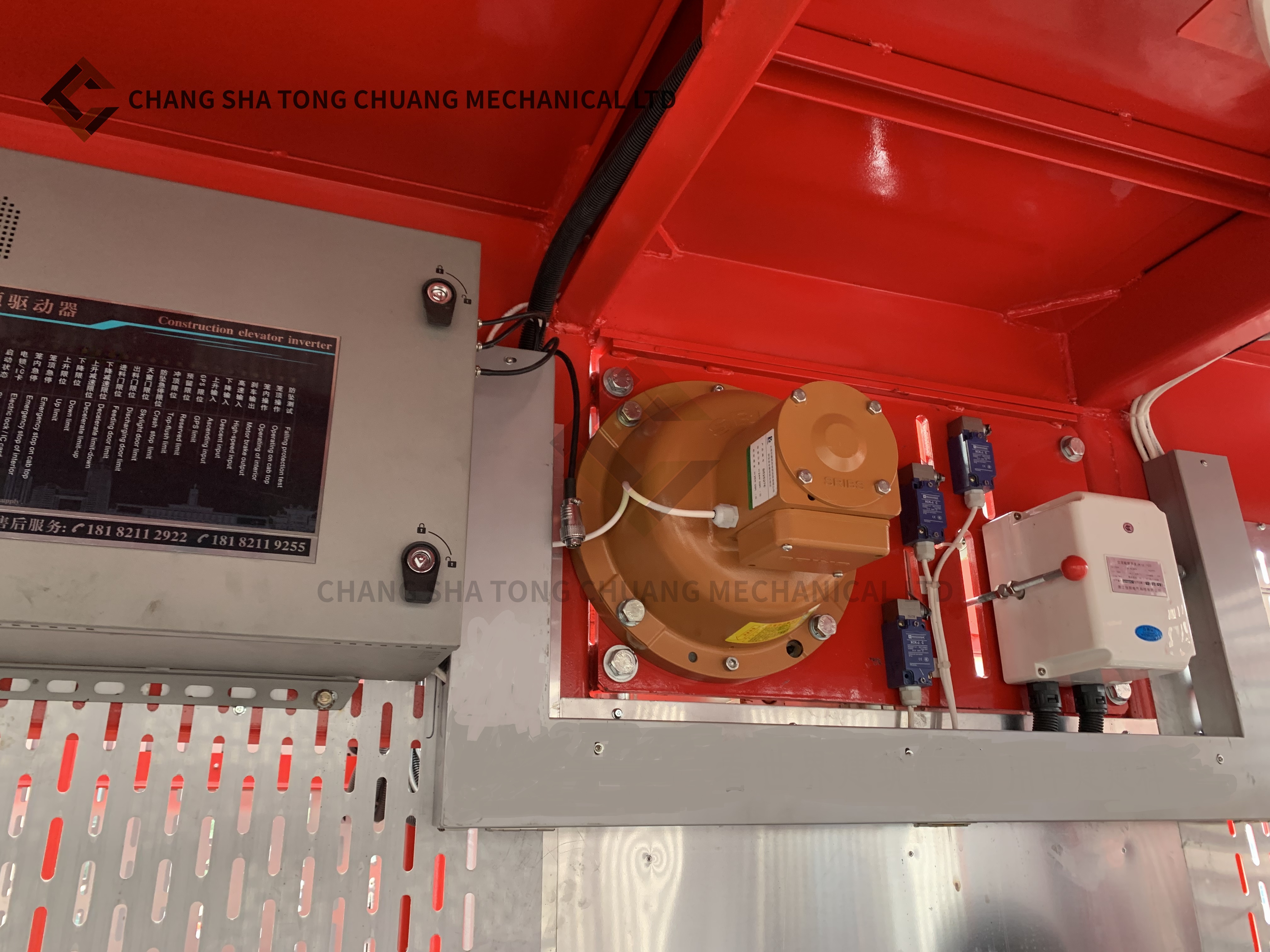

6. Select high-quality raw material from China Bao Steel Group. The spare parts of motors, reducers, gearbox, safety device with low noise, while electrics parts of Schneider or Germany brand has reliable quality.
7. The compact and reasonable structure with the special design is easy for installation and adjustment.

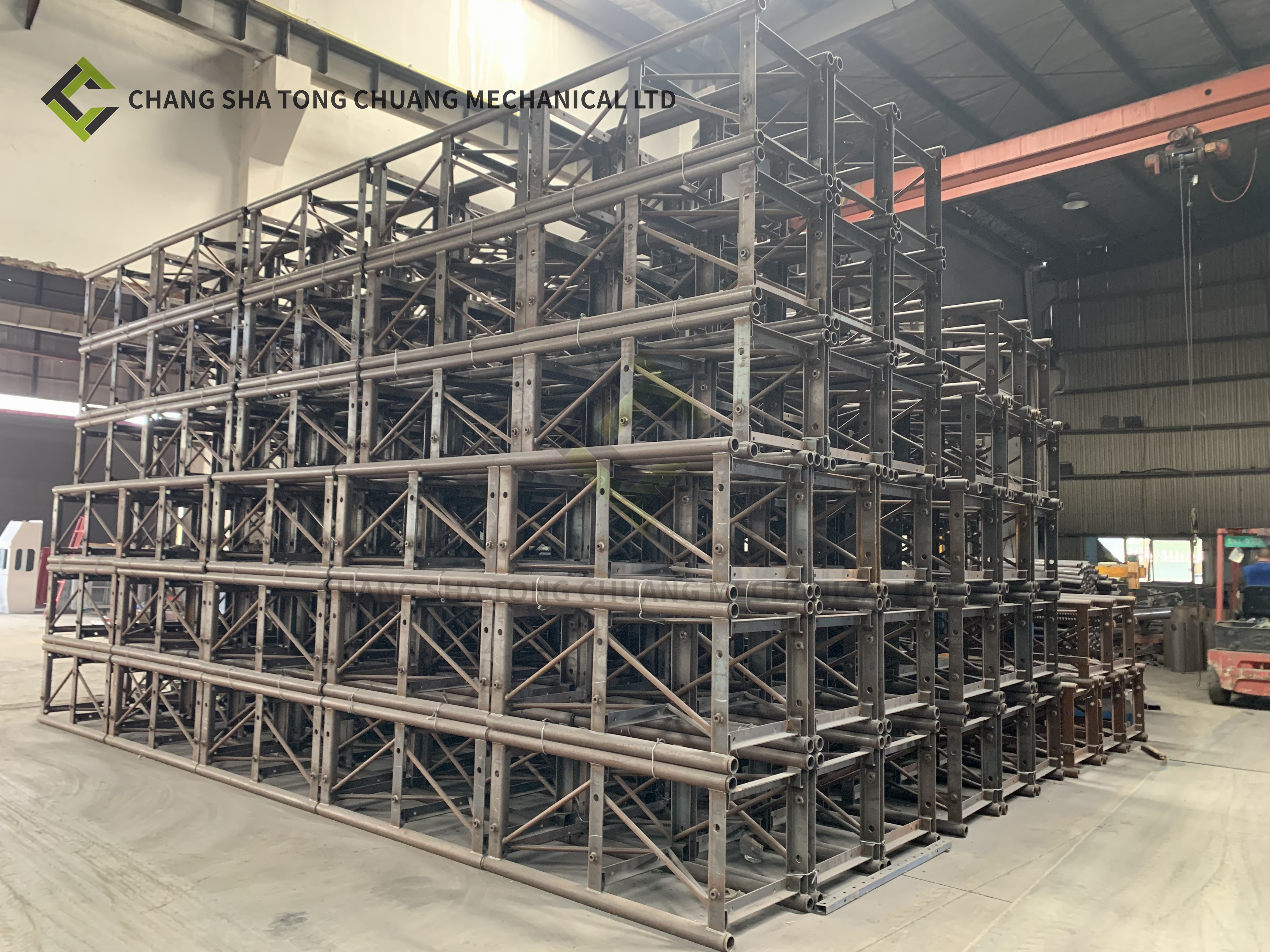

8. Each piece of equipment will be tested and made records in Factory and all details will be adjusted such as motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section.
9.The erection test will ensure the completed equipment runs well when taken into use.

Technical Parameter:

Characteristic		Model	Rated Loading	Lifting Speed	Motor Power
Double cages		SC200/200	2x2000kg	33m/min	2x(3x11kw) / 2x(3x8.5kw)
		SC150/150	2x1500kg	33m/min	2x(2x13kw)
		SC100/100	2x1000kg	33m/min	2x(2x11kw)
Single cage		SC200	2000kg	33m/min	3x11kw /3x8.5kw
		SC150	1500kg	33m/min	2x13kw
		SC100	1000kg	33m/min	2x11kw
Double cages	Low speed	SC200/200D	2X2000kg	0-40m/min	2x(3x11kw)/2x(3x8.5kw)
	Low speed	SC100/100D	2x1000kg	0-40m/min	2x(2x13kw)
	Mid speed	SC200/200Z	2x2000kg	0-60m/min	2x(2x23kw)
	Mid speed	SC100/100Z	2x1000kg	0-60m/min	2x(2x15kw)
Single cage	Low speed	SC200	2000kg	0-40m/min	3x11kw /3x8.5kw
	Low speed	SC100	1000kg	0-40m/min	2x13kw
	Mid speed	SC200	2000kg	0-60m/min	2x23kw
	Mid speed	SC100	1000kg	0-60m/min	2x15kw
