4*2 Drive Mode Liquid Scissor Type Aerial Work Platform for 2260kg Load in Construction Machinery

Name: 42 Drive Mode Liquid Scissor Type Aerial Work Platform for 2260kg Load in Construction Machinery
Brand: Domestic
Price: 1 USD

China 4*2 Drive Mode Liquid Scissor Type Aerial Work Platform for 2260kg Load in Construction Machinery wholesale

Brand Name : Domestic

Model Number : Z08N

Place of Origin : Changsha，Hunan，China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100pcs/month

Delivery Time : 7days

Packaging Details : Standard export package

Color : Green

Drive Mode. : 4*2

Weight : 2260kg

Battery : 8x6V/200Ah

Contact Now

Product Decription

The platform height of the liquid driven scissor type aerial work platform is lower than that of the arm type aerial work platform, reaching up to 5.8-13.8 meters. Powered by batteries, more environmentally friendly. Due to the absence of exhaust emissions or loud noise during operation, they are very suitable for indoor operation.

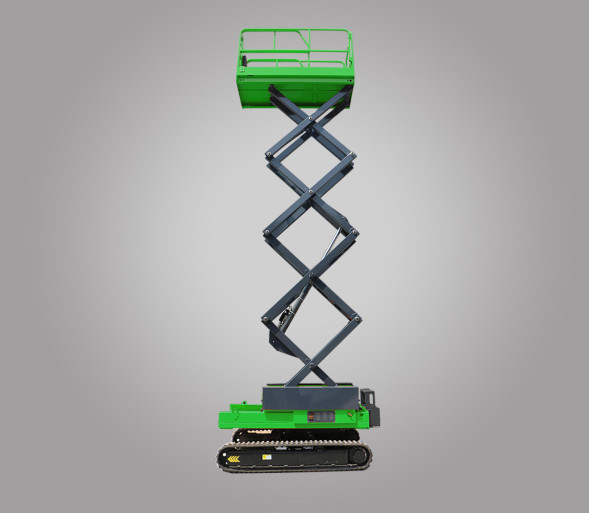

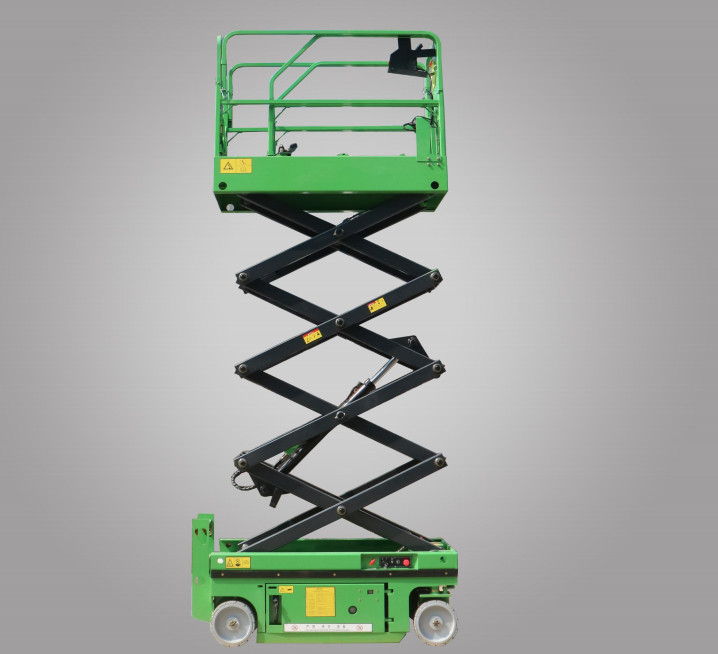

Product Picture

4*2 Drive Mode Liquid Scissor Type Aerial Work Platform for 2260kg Load in Construction Machinery

Product parameters

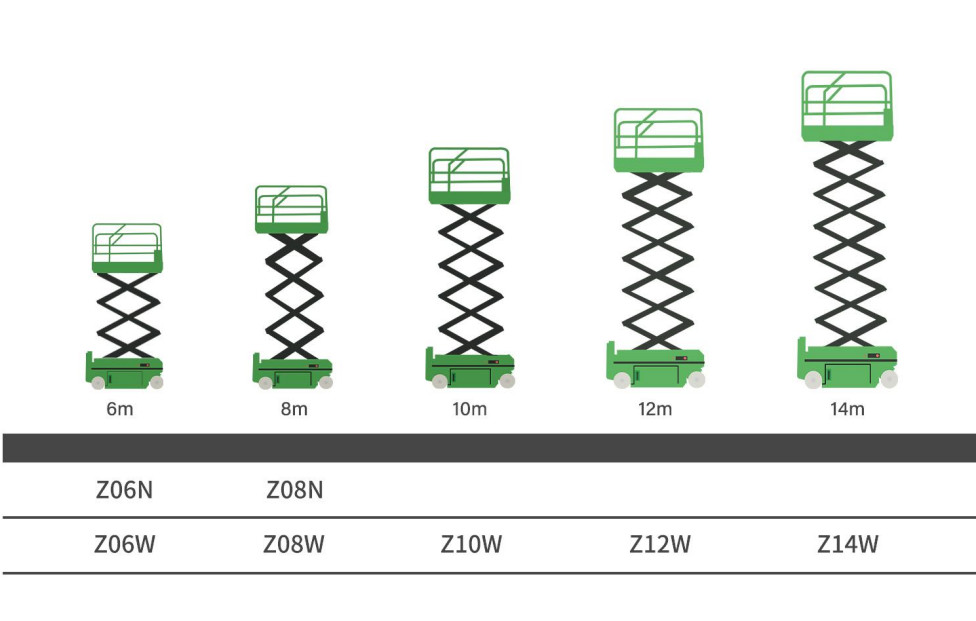

Model	Z08N	Z06W
Size
Maximum working height	9.8m	9.8m
A maximum platform height	78m	7.8m
Platform length	2.27m	2.27m
Platform width	0.86m	1.12m
Daily vehicle length	2.43m	2.43m
Vehicle width	0.89m	1.21m
Overall height (unfolded fence)	2.35m	2.35m
Height of the whole machine (folded fence)	1.9m	1.9m
platform extension size	0.9m	0.9m
wheelbase	1.87m	1.87m
Ground clearance (retracted/raised)	0.11m/0.02m

Performance
Maximum number of employees	2	2
Safe working load	320kg	450kg
Extend platform safety workload	113kg	113kg
Driving height	High altitude driving	High altitude driving
Maximum climbing ability (retracted)	25%	25%
Inner/outer turning radius	0/2.1m	0/2.1m
Increase/decrease speed	3-5m/min	3-5m/min
Drive mode	4×2	4×2
Tire type	Solid seamless tire	Solid seamless tire
Tire size	φ305×100mm	φ381×127mm
power
Battery	24V/200Ah	24V/200Ah
Charger	24V/36A	24V/36A
Hydralic System
Hydraulic oil capacity	6L	6L
Weight
Total weight	2260kg	2350kg
