48V/35Ah Battery and Green Design Electric Straight Arm High Altitude Work Platform for Construction Machinery

Name: 48V35Ah Battery and Green Design Electric Straight Arm High Altitude Work Platform for Construction Machinery
Brand: Domestic
Price: 1 USD

China 48V/35Ah Battery and Green Design Electric Straight Arm High Altitude Work Platform for Construction Machinery wholesale

Brand Name : Domestic

Model Number : J24Li/J26Li

Place of Origin : Changsha，Hunan，China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100pcs/month

Delivery Time : 7days

Packaging Details : Standard export package

Color : Green

Drive Mode. : 4*2

Weight : 1510kg

Battery : 48V/35Ah

Contact Now

Product Decription

The maximum working height of the crawler spider aerial work platform is 10 meters to 18 meters, and the maximum load is 200 kilograms. Due to its compact design and light weight, the product is easy to move and store. Its flexible steering capability provides precise positioning and efficient operation. The product is also equipped with anti slip and durable features
The rubber tracks used ensure that it can walk on uneven terrain.

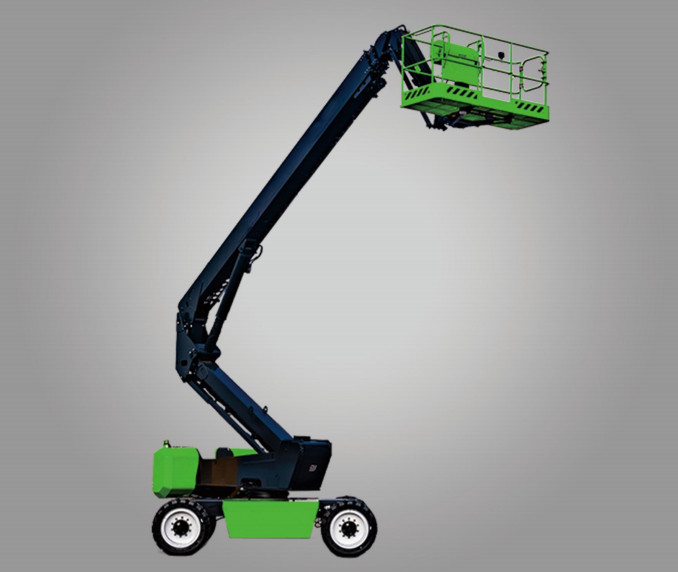

Product Picture

48V/35Ah Battery and Green Design Electric Straight Arm High Altitude Work Platform for Construction Machinery

Parameters

model	J24Li	J26Li
size
Maximum working height	26.2m	28.8m
Maximum platform height	24.2m	26.8m
Maximum homework radius	20m	22m
Platform size (length x width)	2.4*0.9m	2.4*0.9m
Vehicle length	10.9m	11.7m
Vehicle width	2.49m	2.49m
Vehicle height	2.92m	2.92m
wheelbase	3.2m	3.2m
Ground clearance (center)	0.3m	0.3m
Whole machine weight	15100kg	16600kg
performance
Rated bearing capacity	300kg/450kg	300kg/450kg
Number of people supported by the platform	3	3
Platform rotation range	±80°	±80°
Range of boom amplitude	±70°	±70°
Rotary table rotation	360 ° continuous	360 ° continuous
Driving speed (receiving status)	5.5km/h	5.5km/h
Driving and climbing slopes	45%	45%
Maximum working slope	3°	3°
Outer turning radius	6.5m	6.5m
Drive steering form	4×2	4×2
tyre	385-45	385-45
power
Battery	80V/500Ah	80V/500Ah
Pump motor power	30kw	30kw
Power of walking motor	5.2kw	5.2kw
control voltage	12V	12V
Charger	80V/60A	80V/60A
Hydraulic oil tank	140L	140L
Emergency power system	12V electric	12V electric
Lithium batteries	Optional
