Design and Structure

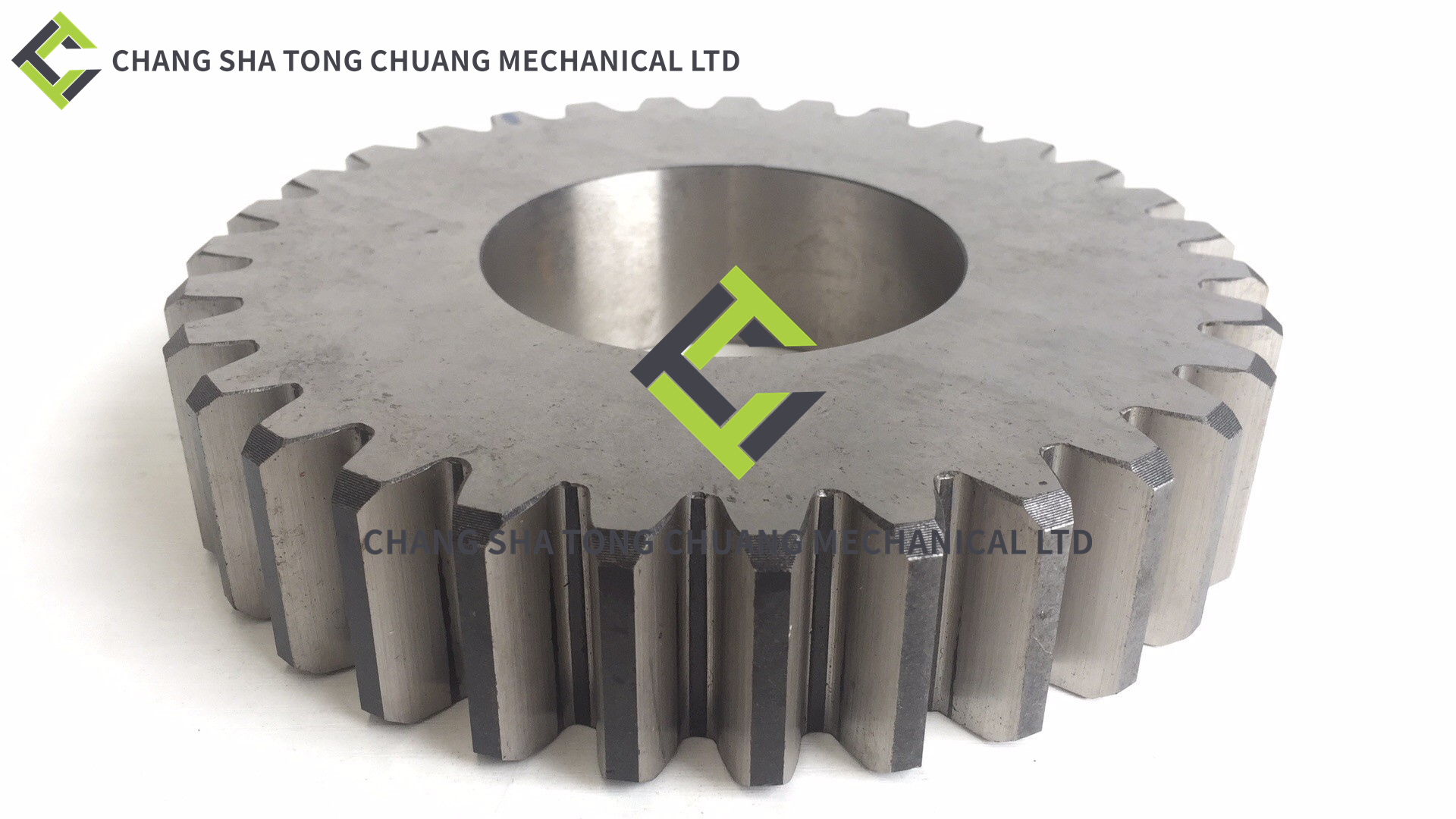

Precision - Engineered Design: The Sibo transfer case secondary - shaft gear with 31 teeth is designed with meticulous attention to detail. The 31 - tooth configuration is a result of precise engineering calculations to achieve the optimal gear ratio for the concrete pump truck's power transmission system. The gear's overall shape and dimensions are carefully crafted to ensure a perfect fit within the transfer case assembly. The teeth are accurately machined to guarantee seamless meshing with other gears, facilitating efficient power transfer.
High - Quality Material Selection: It is constructed from top - grade materials. These materials are chosen for their outstanding mechanical properties, such as high tensile strength and excellent hardness. This enables the gear to withstand the substantial loads and high - torque forces that are typical during the operation of a concrete pump truck. Additionally, the material has good resistance to wear and fatigue, ensuring a long - service life even under the arduous conditions of a construction site.
Working Principle
Power Transmission Function: The primary role of this secondary - shaft gear is to transmit power within the transfer case. Power from the engine is transferred through a series of components to the secondary - shaft gear. As it rotates, the 31 - tooth gear engages with other gears in the transfer case, transmitting rotational energy at a specific speed and torque ratio. This power transfer is crucial for the proper operation of the concrete pump truck's hydraulic pumps and other mechanical subsystems that are essential for the pumping process and the movement of the boom.
Synchronized Gear Operation: The gear operates in a synchronized manner with other gears in the transfer case. The precise meshing of its 31 teeth with the teeth of mating gears ensures smooth and consistent rotation. This synchronization is vital for the stable operation of the pump truck, as any disruption in the gear rotation can lead to inefficient power transfer, vibrations, and potential damage to the equipment.
Performance Features
Optimal Torque Transmission: With its 31 - tooth design and robust construction, the gear is capable of effectively transmitting the required torque. The concrete pump truck demands a significant amount of torque for its various functions, and this gear can handle such loads without slippage or premature wear. The torque - transmission capabilities ensure that power is efficiently transferred to the necessary components, enabling the smooth operation of the pump truck's functions.
Durability and Long - Term Reliability: Thanks to the use of high - quality materials and precise manufacturing techniques, the gear exhibits excellent durability. It can endure the heavy - duty usage, exposure to dust, debris, and the continuous vibrations associated with the operation of a concrete pump truck. This durability translates to long - term reliability, reducing the frequency of gear replacements and maintenance, which in turn saves both time and costs for the users.
Compatibility with the System: This gear is designed to be fully compatible with the Zoomlion concrete pump truck's transfer case and its associated components. It is engineered to fit precisely and work in harmony with other gears and mechanical elements in the transfer case. This compatibility simplifies the installation and replacement process, making it more convenient for maintenance technicians to perform necessary servicing.
